4. Reference flow: subject → ehr_id → standard AQL

This section walks the end-to-end flow that the SPECIFICATION (§6) formalises, in terms of the abstract roles a conforming deployment must fill and the proposed IHE binding for each. Two variants are shown: with a localization service and without one. A concrete regional realisation, including a walkthrough on a pseudonymised identifier with no directly identifying identifier in the CDR, is in Annex B (informative), kept out of the normative body on purpose.

4.1 Steps

  • Step 0 - Façade API. The gateway exposes a conformant openEHR Query API (POST {base}/v1/query/aql, where {base} is the deployment’s ITS-REST base URL - no prefix is mandated, N28). The client MAY identify the patient with WHERE e/ehr_status/subject/external_ref/id/value = <patientId> and MUST NOT need any federation-specific syntax.

  • Step 1 - Patient resolution (outside AQL). The gateway extracts <patientId> (and its issuing namespace) and resolves it to a set of {node, local ehr_id} using three abstract services (proposed IHE binding named; regional realisations in Annex B):

    1. Localization (undirected queries) - a localization / record-locator service returns candidate source communities. Proposed binding: IHE XCPD. (A localization query MAY, for example, be a national record-locator lookup; in some regions the localizer is consent-aware and its list is already consent-filtered - §14.3, Annex B.)

    2. Addressing - an addressing / directory service resolves each community to its local PIX Manager and CDR base URLs. Proposed binding: IHE mCSD.

    3. Cross-reference - an identifier cross-reference service maps <patientId> to the local ehr_id (or not-found) per node. Proposed binding: IHE PIXm $ihe-pix with sourceIdentifier=<patientId> and targetSystem=<the domain’s ehr_id system>.

  • Step 2 - Fan-out. For each node with a resolved ehr_id, the gateway dispatches standard, non-federated AQL scoped to that ehr_id.

  • Step 3 - Combine + annotate. The gateway concatenates rows, applies federation DISTINCT/ORDER BY, re-injects the requested subject value into rows if the façade AQL SELECTed it (the value is the input, not read from a CDR), adds endpoint-provenance columns if requested, and emits meta.federation.endpoints[] (including any not-resolved / consent-denied / not-localized / unresponsive nodes, each with a status from §11.1).

4.2 Variant A - with a localization service

Federation reference flow with a localization service

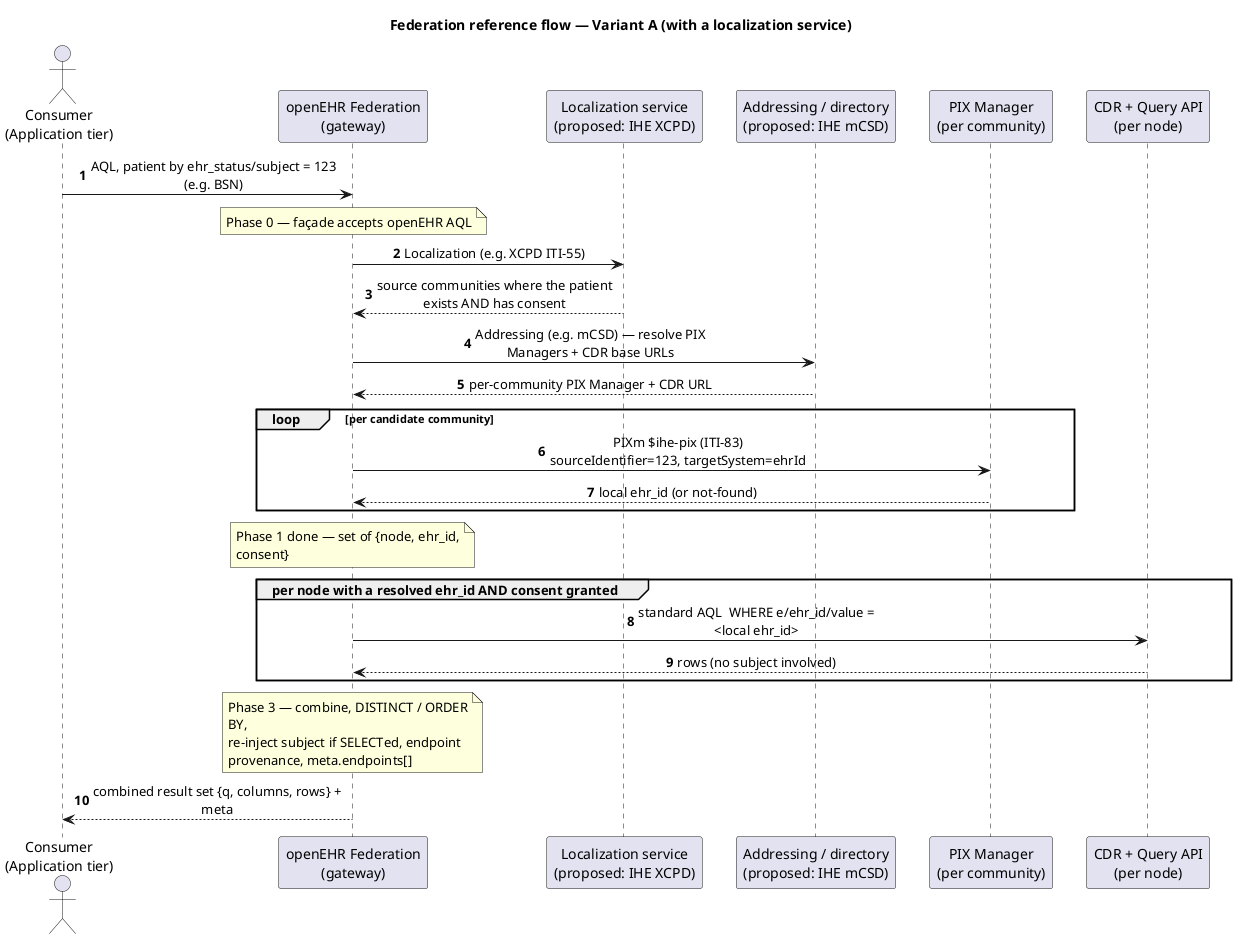

Figure 1. Reference flow, Variant A - with a localization service. Source: diagrams/federation_flow_with_localization.puml.

4.3 Variant B - without a localization service

With no localization service, the gateway skips localization and addressing and asks all known nodes' PIX Managers directly (an ask-all localization fallback; §14/N4). Every node that returns a local ehr_id is queried. The rest are reported in meta.federation.endpoints[] as not-resolved.

Federation reference flow without a localization service

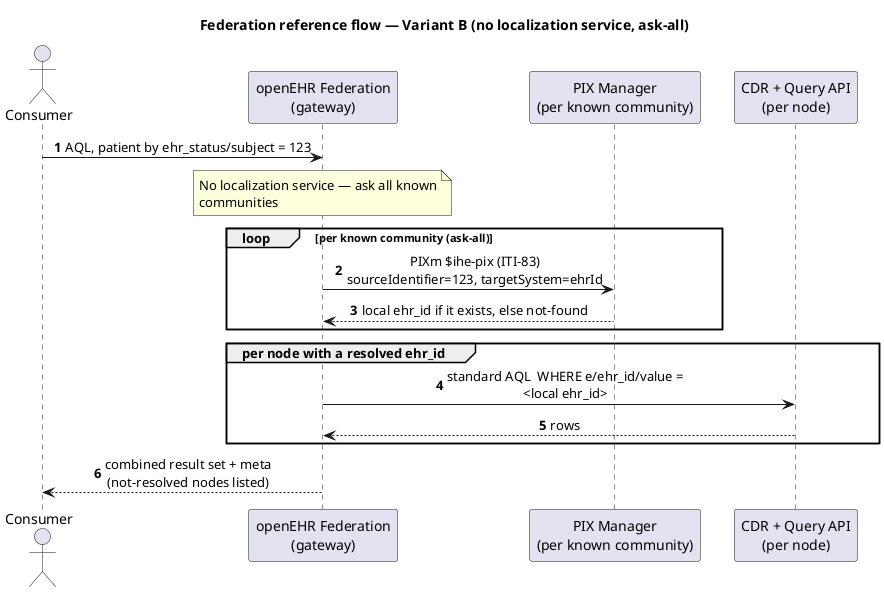

Figure 2. Reference flow, Variant B - no localization service (ask-all). Source: diagrams/federation_flow_without_localization.puml.

4.4 The demographic input MAY be pseudonymised

Nothing in this flow requires <patientId> to be a directly identifying identifier (§5.1). Because Step 1 resolves whatever identifier the client presents to a per-node ehr_id outside AQL, the presented identifier MAY be a pseudonymised id, and nodes need store no directly identifying identifier in the CDR. Requirement N5 rests on that principle. A worked example on a pseudonymised identifier is in Annex B §B.7.
